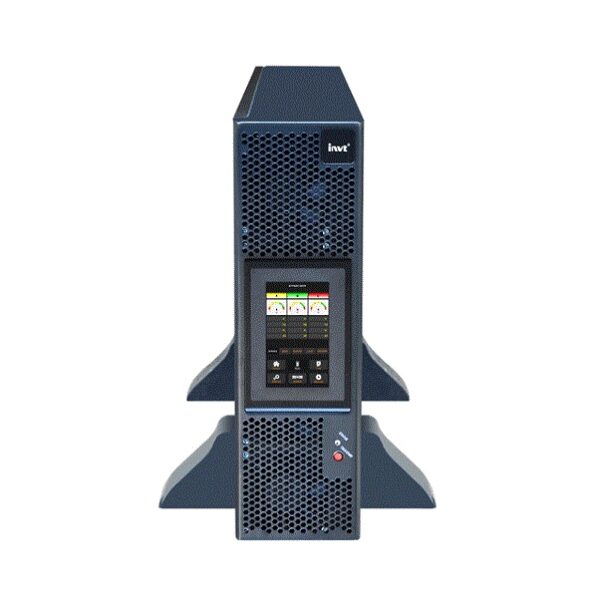

Bộ lưu điện UPS HR33 Series Rack Online 10-25kVA

MODEL

HT33010XS
HT33010XL

HT33015XS
HT33015XL

HT33020XS
HT33020XL

HT33030XS
HT33030XL

HT33040XS
HT33040XL

Capacity

10kVA

15kVA

20kVA

30kVA

40kVA

INPUT

Phase

3Ph+N+PE,380V/400V/415V(line to line)

Voltage range

304-478Vac (Line-Line),full load;
228V-304Vac (Line-Line),load decrease linearly according to the min phase voltage

Frequency range

40-70Hz

THDi

<4%

<3%

Power factor

>0.99

OUTPUT

Voltage

380/400/415VAC (Line-Line)

Voltage regulation

±1%

THDu

<1% (linear load),
<5.5% non-linear load according to IEC/EN62040-3

<1%(linear load),<5%(none-linear load)

Power factor

1.0

0.9

Frequency range

50/60Hz

Frequency precision

0.01%

Overload capability

110% for 60 min; 125% for 10 min;150% for 1 min;>150% for 200ms

BATTERY

Voltage

±240VDC

Charger  power

20%*System Power

Voltage precision

1%

SYSTEM

System efficiency

Normal

95%

95%

96%

Battery

94.5%

95%

96%

Display

LCD + LED + Keyboard

IP class

IP20

Interface

Standard: RS232, RS485,Dual input kit;
Option: SNMP, Dry contact,, Parallel kit, Battery cold start

Operation Temperature

0-40℃

Relative humidity

0-95%(Non condensing)

Noise

<55dB (1 meter away)

PHYSICAL

Weight(Kg)

51.5

51.5

89

89

140

31

31

50

52

61

Dimension  (W*D*H)

250*840*715

250*840*715

350*738*1335

350*738*1335

500*840*1400

250*660*530

250*660*530

250*680*770

250*680*770

250*836*770
